Hanwha SM481 Plus SMT Assembly line
Hanwha SM481 Plus SMT Assembly line

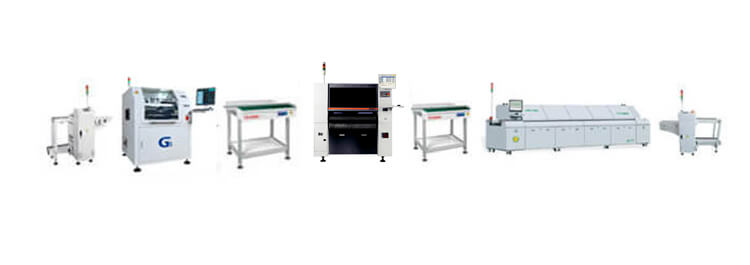

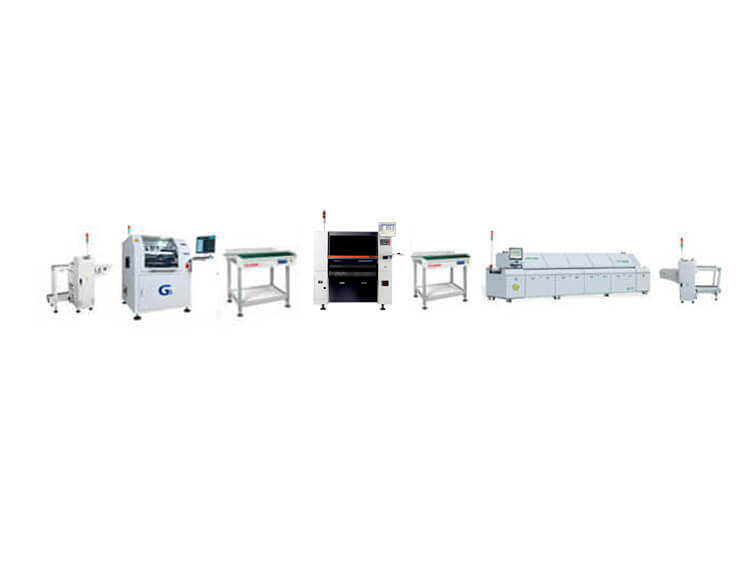

Automatic Hanwha SMT Assembly line, with Hanwha SM481 Plus pick and place machine, this SMT assembly line is suitable for home appliance industry: air conditioners, refrigerators, washing machines, water heaters, induction cookers, LED lamps, indoor lighting equipment, outdoor lighting equipment, industrial lighting
1. PCB loader
Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.
Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.
2. Automatic smt stencil printer A5
A Seriel smt stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
A Series High Precision Automatic solder paste printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~1200mm x 800mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

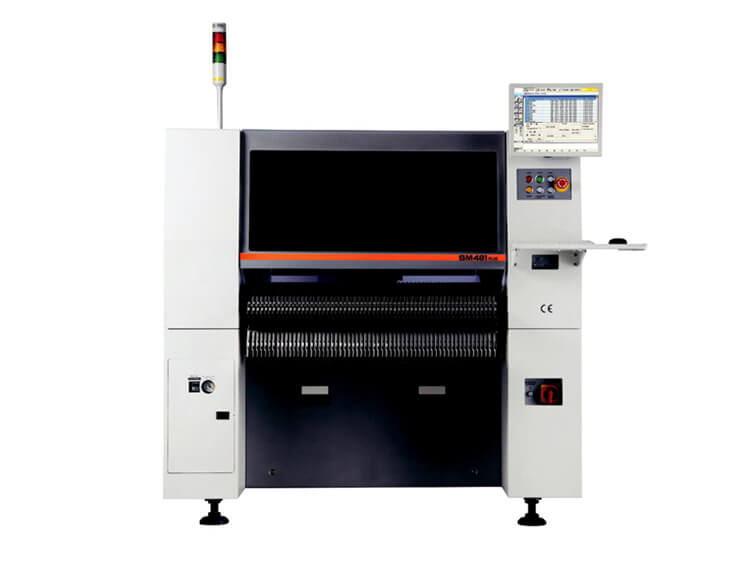

3. Hanwha SM481 Pick and place machine.
As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 40,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.
In addition, it is applicable up to 0402 chips and 42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.

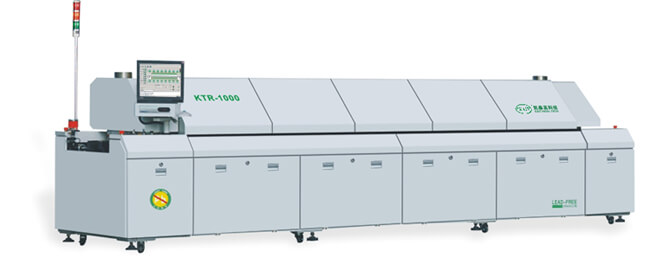

4. SMT reflow oven KTR 1000.
1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.
2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.
3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.
4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.
5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.
6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.
5. Inline SMT AOI Machine DC 600.
Vector analysis algorithm, a combination of multiple detection algorithms to achieve the best detection capabilities.
The full version matches multiple pieces of detection at any position.
Support offline programming and debugging.
Multi-program, multi-board testing and automatic switching of test programs on both sides, making testing more efficient and faster.
Smart camera barcode recognition system (identifying 1D code and 2D code).
Multi-line monitoring system, all production line production status is clear at a glance.
The remote programming and debugging control functions are used together, and the software control performance is stronger.
A powerful SPC statistical analysis system.
Multifunctional new design, new algorithm, new interface
The new 600 series products intelligently meet the industrial 4.0 solution
Powerful SPC statistical analysis system
Professional SPC analysis report, the macro-commissioning of the entire production process, promote the improvement of the production line, reduce the incidence of defects, and improve production efficiency.
6. SMT PCB Unloader UNL330
2)Special Aluminum alloy guide rails and rubber belt
3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan
4)Pneumatic PCB clamping structure
5)Attach one set 0.7m length pcb conveyor
6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm
7)PCB max size(L*W):(L)330*(W)250mm
9)Adjustable Lifting distance:10,20,30,and 40mm
10)Programmable Mitsubishi PLC and controller
11)PCB Automatic loading to conveyor
12)Operation Control system: Touch Panel controlled interface
