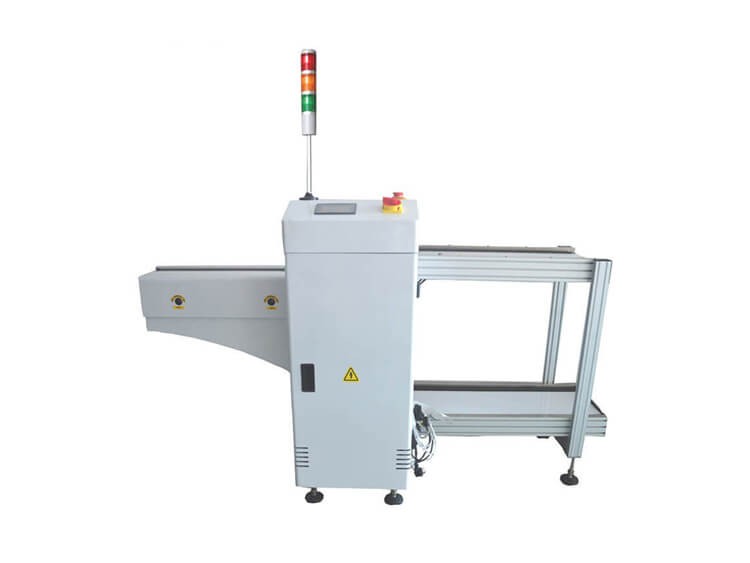

SMT PCB Unloader UNL330

Demensions:1790(L)×680(W)×1650(H)mm
PCB size: 50x50 - 330x2500mm
SMEMA compliant
Lift platform pitch selection:50

SMT PCB Unloader UNL330

Specifications:

SMT PCB Unloader UNL330

1)Machine Size(L*W*H):L1790*W680*H11650mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)330*(W)250mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box

Item

Product

Describtion

1

Auto SMT Unloader

1 Dimension:1790(L)×680(W)×1650(H)mm

2 Special aluminum guide rail and special chain;

3 90WSPG Brake motor drive the ball screw,Make Magazine lift;

4 Pneumatic clamping structure

5 Magazine Size :535x460x565mm

6 PCB Size :60(W)×60(L)mm--330x250mm

7 Direction: R-L or L-R;

8 Lift platform pitch selection:10 20 30 40 50

9 Siemens PLC control system;

10 auto upper function;

11 Control panel is touch screen;

12 Power :0.25KW

13 Power supply 220V 50HZ

14 Air Supply 4-6MPa
