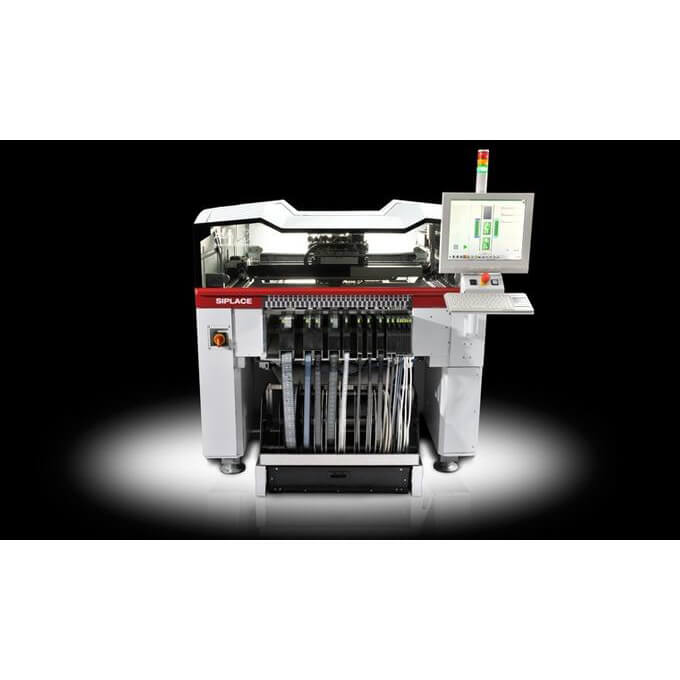

Siemens Siplace CP12 Pick And Place Machine

Patch speed:24000CPH
Dimension:1,500 mm x 1,666 mm
Weight: 1,850 kg
Feeder Capacity 120 x 8 mm
Product description: Siemens Siplace CP12 Pick And Place Machine, Patch speed:24000CPH, Dimension:1,500 mm x 1,666 mm, Weight: 1,850 kg, Feeder Capacity 120 x 8 mm

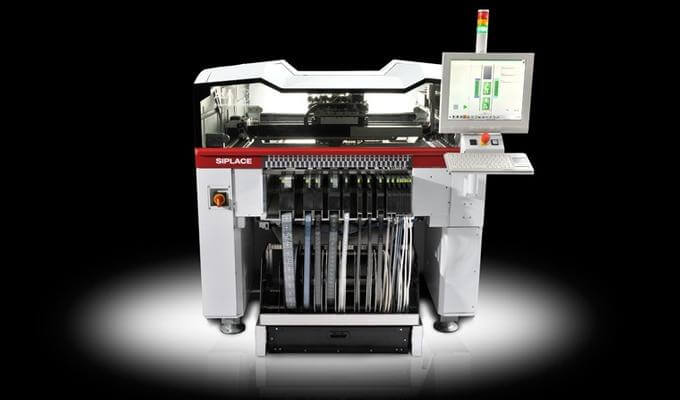

Siemens Siplace CP12 Pick And Place Machine

Products description



Placement MachineSIPLACE E
HeadsCP14, CP12, CP12/PP, CP6/PP, TH
PCB Size(LxW)1,200 x 460 mm
PCB Thickness0.3 - 4.5 mm
feeder Capacity120 x 8 mm
Power Supply3 x 200/208/220/230/380/400/415 VAC ± 10%, 50/60 Hz, 1.8 KW
Compressed Air5.0 bar (0.5 MPa) - 10.0 bar (1.0 MPa)
Air Consumption90 NL/Min90 NL/Min140 NL/Min140 NL/Min185 NL/Min
Dimension (LxW)1,500 mm x 1,666 mm
Weight1,850 kg

Basic parameters:

Mounting head CP20 placement head CP12 placement head TH placement head
Component range 01005~6×6mm 0201~18.7×18.7mm 0201~200×125mm
Component height 4 mm 6 mm 25 mm
Mounting accuracy ±41μm, ±0.5°@3σ ±41μm, ±0.5°@3σ ±22μm, ±0.05°@3σ
Model DX4 DX2 DX1
Applicable heads CP20 CP20, CP12, TH CP20, CP12, TH
Theoretical speed 135,500 CPH 65,500 CPH 33,300 CPH
IPC speed 90,500 CPH 38,000 CPH 22,500 CPH
PCB (length X width) mm 50×50~550×560 50×50~610×560
PCB (thickness) mm 0.3~4.5 (others available on request)
8mm feeder level 148 120
Power supply Three-phase 220/208/230/380/400/415VAC±5%. 50/60Hz
Gas supply 5.0bar (0.5MPa)-10bar (1.0MPa)
Machine size (length X width) mm 1900×2734 1500×2854 1500×2854
Machine weight 346Okg 2532kg 2482kg
