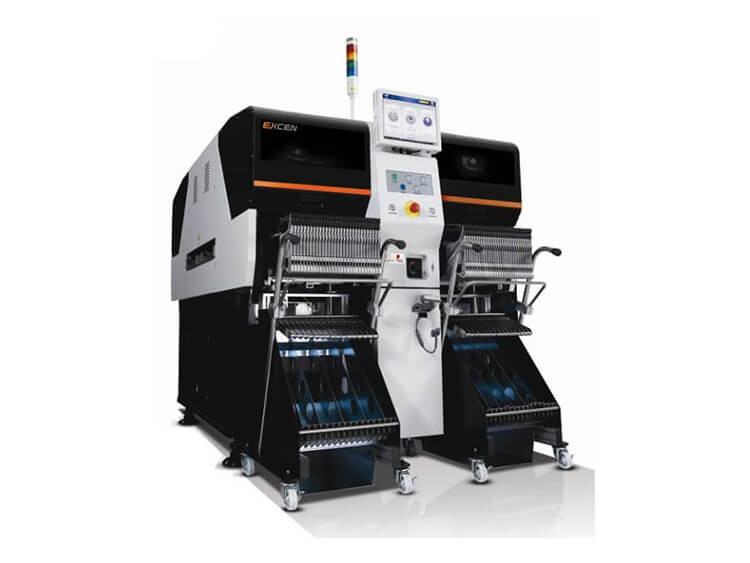

Samsung EXCEN PRO Pick and Place Machine

High Speed:120,000 CPH
Ultra Slim Design with a Total Length of 1.25m
Applies High Rotary Modular Head
Side-view Vision System

Samsung EXCEN PRO Pick and Place Machine

Specifications:

Samsung EXCEN PRO Pick and Place Machine

As a high speed modular mounter that applies a high speed rotary head equipped with 16 nozzles, EXCEN realizes the world’s highest speed of 120,000 CPH among mounters of the same class as well as the world’s highest area productivity. In addition, it secures the reliability of fine chip placement by applying the function to monitor pre- and post-part placement, SVS (Side-view Vision System), and maximizes work convenience and actual productivity by applying various operation modes including non-stop device type change, mixed production of different boards as well as the SMART Feeder that realizes the world’s first Auto Splicing and Auto Loading functions.

120,000 CPH(Optimum)

Ultra Slim Design with a Total Length of 1.25m

Applies High Rotary Modular Head

Side-view Vision System(SVS)   - Monitoring of pre- and post-part placement

Mixed Production of Different Boards/

Independent Production at the Front and Rear/

Non-stop Change-over of Device Types

High Speed and High Precision Feeder

SMART Feeder - The world’s first Auto Splicing and Auto Loading functions

HIGH PERFORMANCE:

Realizes the Highest Placement Speed of 120,000 CPH by Applying a High Speed Rotary Head Equipped with 16 Nozzles

Increases Actual Productivity by Reducing the Waiting Time Between Part Pickup and Placement to Zero(Cycloidal Motion)

Ultra Slim Design with a Total Length of 1.25m with Line Length and Area Productivity Being 50% and 200% of Those of Existing High Speed Lines, Respectively

HIGH RELIABILITY:

Side-view Vision System(SVS)

Secures fine chip placement reliability by adopting a function to monitor pre- and post-part placement status

Applies an Electrically Driven High Speed and High Precision Feeder

Enables a stable supply of parts through high performance servo control

Applies Samsung’s original high precision accuracy compensation algorithm and mechanism to minimize accuracy deviation over time

Automatic Pickup Position Correction Function

Feeders have a fiducial mark for automatic recognition of part pockets - Applies automatic feeding after reel replacement

The function to recognize the nozzle center after automatic nozzle change allows for automatic correction of nozzle offset

Automatic correction of pickup error during pickup through part center recognition offset

FLEXIBLE PRODUCTION:

Modular Head

Applies a modular head to allow an exchange between the high speed head and multi-functional head at the customers’ production site

Allows Simultaneous Production of Several Products Through Independent Production at the Front and Rear as well as Mixed Production of Different Types of Boards

Allows the Device Type to be Changed at a Lane without Stopping the Machine by Providing a Non-stop Device Type Change Function

Increased machine operation efficiency through advance preparation using a docking cart

Allows Maximization of Actual Productivity Through Various Operation Modes

Independent production at the front and rear mixed production of different boards, non-stop device type change, part placement in turns(Loading Time Zero)

EASY OPERATION:

Secures Feeder Operational Convenience by Applying a Super Slim Single Lane Electrically Driven Feeder

One-touch Exchange

Minimizes device type changing time by applying a one-touch exchange method to the docking cart, ANC and backup plate

SMART Feeder

Realizes the world’s first feeder equipped with Auto Splicing and Auto Loading functions · Applicable to reels with a small quantity of parts

Maximizes work convenience and actual productivity by automating the splicing process for part reel replacement which has been performed by hand

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
