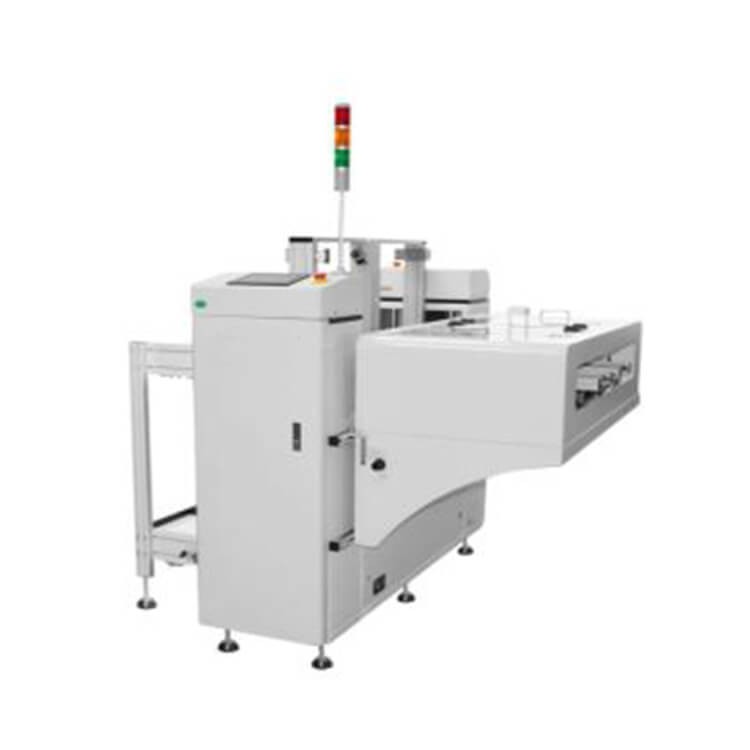

SMT PCB NG/OK Unloader NLD-330

Dimension: 1730*1530*1250
SMT PCB NG/OK Unloader Machine
Weight: Approx.: 340kg
PCB Size: 50*50 to 530*460

SMT PCB NG/OK Unloader NLD-330


SMT PCB NG/OK Unloader NLD-330

1.PLC+Touch screen control , easy to operate.

2.Design with firm structure.

3.The upper and lower air clamps ensure the location of the material box accurately.

4.Special gas path design ensures that the PCB panel is not pushed.

5.Automatic detection of fault code display function.

6.With SMEMA signal .

power supply

Single phase 220V

Starting power / no-load power


Lifting step

10, 20, 30, 40, (mm) can be set arbitrarily

Compressed air


Fixed edge

Front fixed (can be customized and fixed)

Transfer direction

Left to right (can be customized right to left)

Transfer height


Step selection

1~5 steps (10mm\step)

Withstand voltage

AC terminal to ground 1500VAC, 1 minute

Use environment

Non-corrosive gas and dust environment


Voltage noise: 1000Vp-p, wave width 1us, 1 minute

Transfer connection push PCB board

Stepper motor (42*48)

Parallel transfer of NG\OK PCB

Using 86 high precision stepper motor

Translational transmission

Imported wire belt timing belt

NG line number

Automatically move to the NG storage box (the storage bin can automatically enter and exit)

OK line number

Automatically enter the OK box through the translation stage
