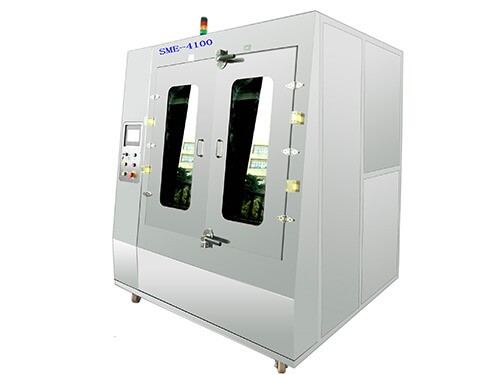

SMT Screen Developing and Stripping Machine SME-4100

Max Screen Size L1000 x W1000 x H40
Solvent tank Min 120L
Clean time 1~4min​
Machine weight About 500kg

SMT Screen Developing and Stripping Machine SME-4100

Specifications:

SMT Screen Developing and Stripping Machine SME-4100

SME-4100 Auto Screen Developing and Striping Machine is used to clean screen after exposure in screen producing process. 2 water spray rods clean the front and rear side of the screen to make the printing graph clear.

SME-4100 also used as Screen Striping Machine to clean photographic coating and ghost image on screen to make it a plain screen and ready to reuse again.

1.High quality electrical pump. High pressure water spray and recycle filtering function.

2.Totally SUS 304  structure, Strong Acid and Alkali corrosion resistance,  10 years lifespan.

3.One-key operation, developing/Stripping and dry process complete automatically according to pre-setting procedure。

4.Standard equipped water level control mechanism, automatically add water when water is not enough..

5.Standard equipped water less alarm and protection system, shut off the machine automatically to protect the pump.

6.Completely closed spray developing process, makes the ground of the workshop clean and day.

7.Super well-known electrical and pneumatic parts, perfect design, strictly produce process to ensure stability and high quality of the machine.

8.It also can be used as auto striping machine after adjusting the water jet pressure and time.

Item

SME-4100 SPEC

Max Screen Size

L1000 x W1000 x H40(mm)

Solvent tank

Min 120L

Clean time

1~4min

Dry time

3~5min

Air consumption

800~1000L/min

Air supply

0.5~0.7Mpa

Air vent size

Φ125 × H30 (mm)

Filter system

2mm water inlet filter

Developing /Striping

Spray clean + air dry

Power supply

AC380V,50HZ,11KW

Machine size

L2000 x W1500 x H 2150(mm)

Machine weight

About 500kg

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
