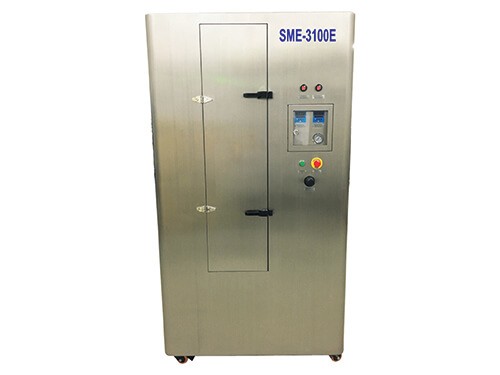

SMT Screen Cleaning Machine SME-3100E

Max Screen Size 1000 x 1000 x 40mm
Solvent tank 50L
Clean time 3~5min
Machine weight 400KG

SMT Screen Cleaning Machine SME-3100E

Specifications:

SMT Screen Cleaning Machine SME-3100E

SME-3100(SME-3120) Pneumatic Silk Screen Cleaning machine is used to clean printed ink and silver paste on printing screen. The machine is totally driven by compressed air. Rotate spray clean + spray resin + air dry functions can clean any silk screen and stencil. It is mainly used in the following industries:

TP/PCB/FPC/Member switch: Ink, Silver paste, Isolated/Etching glue Screen and Stencil.

Clothing/Sings/Plastic/Hardware Silk Printing Screen.

Machine Features:

1.Totally driven by compressed air, no electric power, no explosion, fire caused by electric sparks.

2.Totally SUS 304 structure, resist Acid and Alkali corrosion, 10 years lifespan.

3.One-key operation, clean, rinse and dry process complete automatically according to pre-setting time procedure

4.Clean and rinse system can use different solvent to meet more strict clean requirement.

5.Multi-level precise filtration system, Solvent repeated use in the machine.

6.Standard equipped with auto solvent fill in and drain out function.

7.Exhaust air vent connected to the factory air pipe, no abnormal flavor in clean workshop caused by solvent, protect working environment, meet the requirement of environment protection.

8.Cut off  10% printing defect, significantly improve printing quality

9.Improve Screen Mesh clean workshop environment, reduce solvent volatile unpleasant flavor.

10.Reduce screen damage rate to less than 1%, extend lifespan of Screen.

11.Solvent repeated use, cost down, greatly reduce solvent emission.

Item

SME-3100 Spec

SME-3120 Spec

Max Screen Size

1000 x 1000 x 40mm( Lx W x H)

1200 x 1200 x 40mm( Lx W x H)

Solvent tank

50L

50L

Clean time

3~5min

3~5min

Resin time

1~2min

1~2min

Dry time

3~5min

3~5min

Air consumption

800~1000L/min

800~1000L/min

Air supply

0.5~0.7Mpa

0.5~0.7Mpa

Air vent size

Φ124 × H30 (mm)

Φ124 × H30 (mm)

Filter system

3-Level filtration system

3-Level filtration system

Clean mode

360°Rotation Clean +Rinse + Dry

360°Rotation Clean +Rinse + Dry

Machine size

L1380 x W1050 x H 1950(mm)

L1550 x W1100 x H 2050(mm)

Machine weight

400KG

460KG
