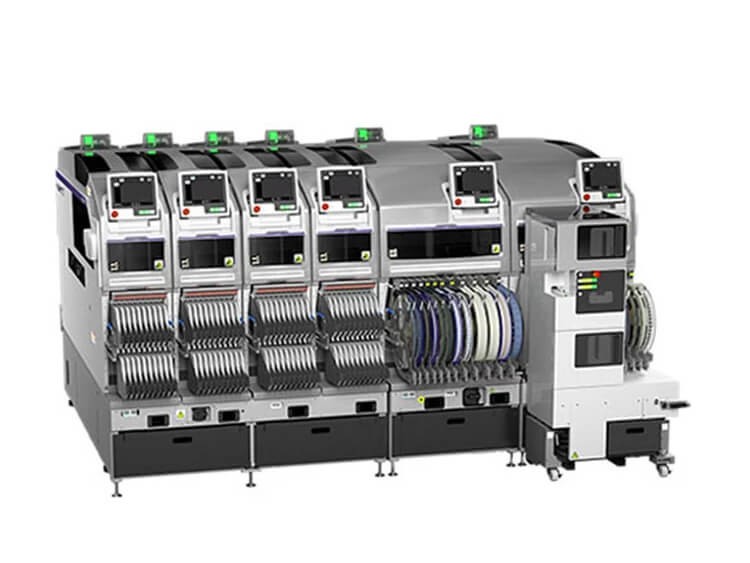

FUJI NXT M3 III Pick and Place Machine

Max PCB: 250 x 510mm
Feeder input: 20 types
Speed: V12 : 26,000 cph
Dimension: 1295x1900x1476mm

FUJI NXT M3 III Pick and Place Machine

Specifications:

FUJI NXT M3 III Pick and Place Machine

FUJI pick and place robot M3 III placement machine, FUJI SMT pick and place machine 12-nozzle head, component capability from 0402 (01005") to 7.5 x 7.5 Height: Up to 3.0 mm.

The NEW NXT III is a highly productive, multi-functional modular placing machine. Built for speed, it features a faster XY robot and tape feeders, as well as a new H24 head that achieves 35,000 chips per hour. The NXT III supports the smallest parts being used in mass production with extreme placing accuracy.

A faster XY robot and faster tape feeders, as well as a newly developed "flying vision" parts camera, mean increased placing ability for all part sizes and types.

The new H24G high-speed head achieves 37,500 cph (chips per hour) (Productivity priority mode) per module, a 44% improvement from the fastest speed of the NXT II.

Item

M3 III

M6 III

Applicable PCB size (LxW)

48 x 48 mm to 250 x 510 mm (double conveyor)*
48 x 48 mm to 250 x 610 mm (single conveyor)
*Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.

48 x 48 mm to 534 x 510 mm (double conveyor)*
48 x 48 mm to 534 x 610 mm (single conveyor)
*Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.

Part types

Up to 20 types of parts (calculated using 8 mm tape)

Up to 45 types of parts (calculated using 8 mm tape)

PCB loading time

For double conveyor: 0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules)

Placement accuracy
(Fiducial mark standard)
* The placing accuracy is obtained from tests conducted by Fuji.

H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00
V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00
H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00
H08/H04 : +/-0.050 mm (3sigma) cpk≥1.00
H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00
H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00
GL : +/-0.100 mm (3sigma) cpk≥1.00

H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00
V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00
H08M/H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00
H08/H04/OF : +/-0.050 mm (3sigma) cpk≥1.00
H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00
H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00
GL : +/-0.100 mm (3sigma) cpk≥1.00

Productivity
* The throughput above is based on tests conducted at Fuji.

H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode)
V12 : 26,000 cph
H12HS : 24,500 cph
H08 : 11,500 cph
H04 : 6,500 cph
H04S : 9,500 cph
H04SF : 10,500 cph
H02 : 5,500 cph
H02F : 6,700 cph
H01 : 4,200 cph
G04 : 7,500 cph
G04F : 7,500 cph
GL : 16,363 dph (0.22 sec/dot)

H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode)
V12 : 26,000 cph
H12HS : 24,500 cph
H08M : 13,000 cph
H08 : 11,500 cph
H04 : 6,500 cph
H04S : 9,500 cph
H04SF : 10,500 cph
H02 : 5,500 cph
H02F : 6,700 cph
H01 : 4,200 cph
G04 : 7,500 cph
G04F : 7,500 cph
0F : 3,000 cph
GL : 16,363 dph (0.22 sec/dot)

Supported parts

H24G: 0201 to 5 x 5 mmHeight: up to 2.0 mmV12/H12HS: 0402 to 7.5 x 7.5 mmHeight: up to 3.0 mmH08M: 0603 to 45 x 45 mmHeight: up to 13.0 mmH08: 0402 to 12 x 12 mmHeight: up to 6.5 mmH04: 1608 to 38 x 38 mmHeight: up to 9.5 mmH04S/H04SF: 1608 to 38 x 38 mmHeight: up to 6.5 mmH02/H02F/H01/0F: 1608 to 74 x 74 mm (32 x 180 mm)Height: up to 25.4 mmG04/G04F:0402 to 15 x 15 mmHeight: up to 6.5 mm



Module width

320 mm

645 mm

Machine dimensions

L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)
W: 1900.2 mm, H: 1476 mm

DynaHead(DX)

Nozzle quantity

12

4

1

Throughput(cph)

25,000
Parts presence function ON: 25,000

11000

4700

Part size (mm)

0402 (01005") to 7.5 x 7.5
Height:Up to 3.0 mm

1608 (0603")to 15 x 15
Height:Up to 6.5 mm

1608 (0603")to 74 x 74 (32 x 100)
Height:Up to 25.4 mm

Placing accuracy
(Fiducial mark based referencing)

+/-0.038 (+/-0.050) mm (3σ) cpk≥1.00*
*+/-0.038 mm obtained with rectangular chip placement (high
accuracy tuning) under optimal conditions at Fuji.

+/-0.040 mm (3σ) cpk≥1.00

+/-0.030 mm (3σ) cpk≥1.00

Part presence check

o

x

o

Parts supply

Tape

o

o


Stick

x

o


Tray

x

o

Parts supply system

lntelligent feeders

Support for 4, 8, 12, 16, 24, 32, 44, 56, 72, 88, and 104 mm wide tape

Stick feeders

4 ≤ Part width ≤ 15 mm (6 ≤ Stick width ≤ 18 mm), 15 ≤ Part width ≤ 32 mm (18 ≤ Stick width ≤ 36 mm)

Trays

Applicable tray size: 135.9 x 322.6 mm (JEDEC standard) (Tray Unit-M)276 x 330 mm (Tray Unit- LT), 143 x 330 mm (Tray Unit-LTC)

Option

Tray feeders, PCU II (Pallet Change Unit), MCU (Module change unit), Engineering panel stand, FUJI CAMX Adapter, Nexim Software
