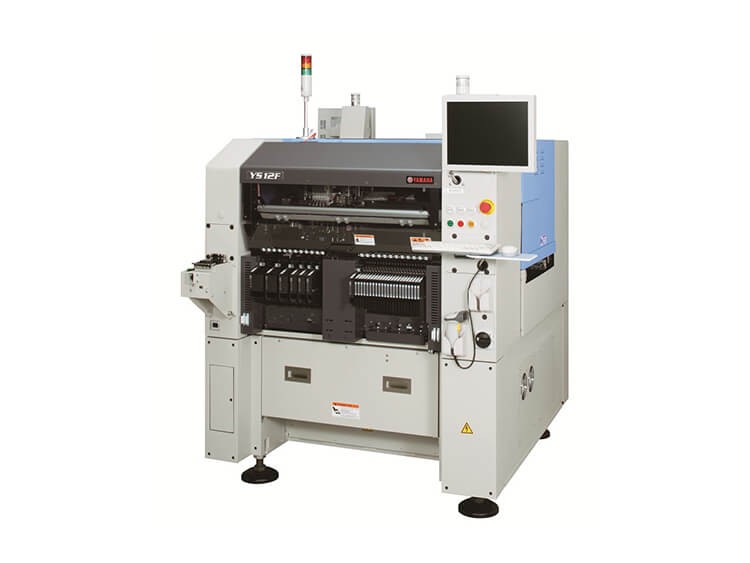

Yamaha YS12F Pick and Place Machine

Yamaha YS12F Pick and place machine
Mounting Speed: 20,000CPH
Applicable PCB: L510mm x W460mm
Weight Approx. 1,370kg

Yamaha YS12F Pick and Place Machine

Specifications:

Yamaha YS12F Pick and Place Machine

Applicable PCB: L510mm x W460mm to L50mm x W50mm

Mounting accuracy: Absolute accuracy(μ+3σ) +/-0.05mm/CHIP

Mounting tact: 20,000CPH(under our optimum condition)

Component supply: Tape reel, tray

Number of component types: Tape package components: 106 types(Max/8mm tape reel conversion)Tray

package conversion: 15 types(Max/JEDEC tray conversion)

Applicable components: 0402 to 45x100mm, including ball type electrode components *32x32mm or more

needs special nozzle set

Applicable height: 15mm

Power supply: 3-Phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source: 0.45MPa

External dimension: L1,254 x W1,755 x H1,475mm (when ATS15 mounted; not include the projection)

Weight Approx. 1,370kg (when ATS15 mounted)

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
