Tokyo Electron Tel Wafer Test Equipment Precio nano Precio

Wafer size (mm) 200,300
probing accuracy (μm) ±0.8
Probing force (kg):300/400
Optical system ASU/BCU-Ⅱ
Product description: Tokyo Electron Tel Wafer Test Equipment Precio nano Precio, Wafer size (mm) 200,300, probing accuracy (μm) ±0.8, Probing force (kg): 300/400, Optical system ASU/BCU-Ⅱ
INQUIRY

Tokyo Electron Tel Wafer Test Equipment Precio nano Precio

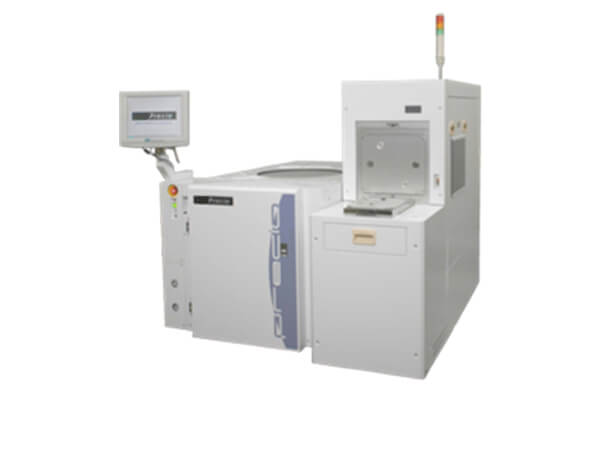

Precio nano™ is a 300mm wafer prober that realizes high accuracy contact and cleanness under high load. In the probing process, demand for probing technology has diversified as process miniaturization, high function/high integration devices and packages are changing. The Precio nano™ and Precio™ not only has improved XY accuracy but also has greater Z precision/Z control methods for a more stable contact. Because of the increase in one-touch contact measurement of FLASH memory and increasing of simultaneous measurements of DRAM, there is a demand to improve the parallelism between the probe card and the chuck top. Precio nano™/Precio™ inherits the P-12 XL functions of parallel probing to respond to various demands with the concept to further reducing test costs. In addition, by installing the probe mark inspection module TELPADS™-I (Option), high-speed probe mark inspection is available.

	Precio nano	Precio octo	Precio
Wafer size (mm)	200,300	150,200	200,300
Availability	New, used	New, used	New, used
Stage technology	Linear motor	Ball screw	Ball screw
XY probing accuracy (μm)	±0.8	±2.0	±1.8
Z probing accuracy (μm)	±5.0	±5.0	±5.0
Probing force (kg)	300/400*	60	200/300*
Optical system	ASU/BCU-Ⅱ	ASU/BCU-Ⅱ	ASU/BCU-Ⅱ
Operation system	Windows+VME	Windows+VME	Windows+VME
