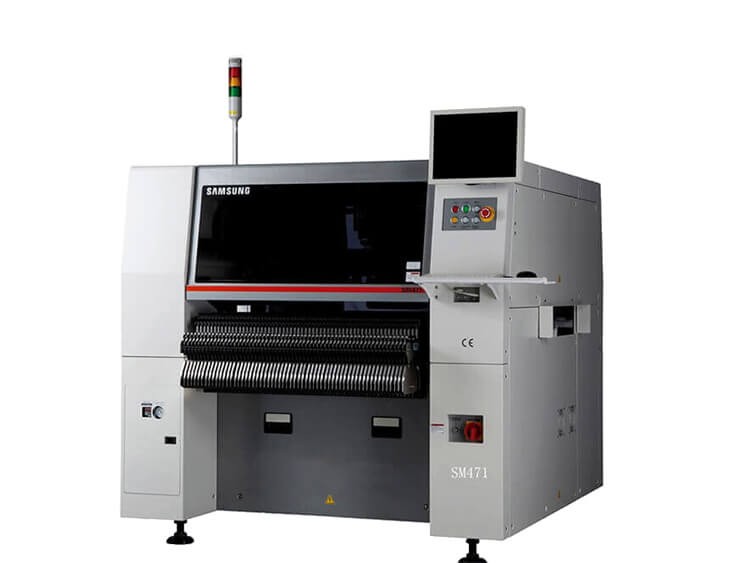

Samsung SM471 Pick and Place Machine

Patch speed 75,000 CPH
PCB size 510 (L) * 460 (W)
weight 1820KG
Dimension: 1650L * 1690D * 1485H
Samsung SM471 Pick and Place Machine

Samsung SM471 Pick and Place Machine

Products description



Chip theoretical speed of 75,000 CPH

Mounting range 0402Chip ~ □ 14mmIC
Positioning accuracy of plus or minus 0.04mm
PCB size 510 (L) * 460 (W)
Equipment size 1650L * 1690D * 1485H
Power AC200 / 208/220/240/380
Equipment weight 1820KG

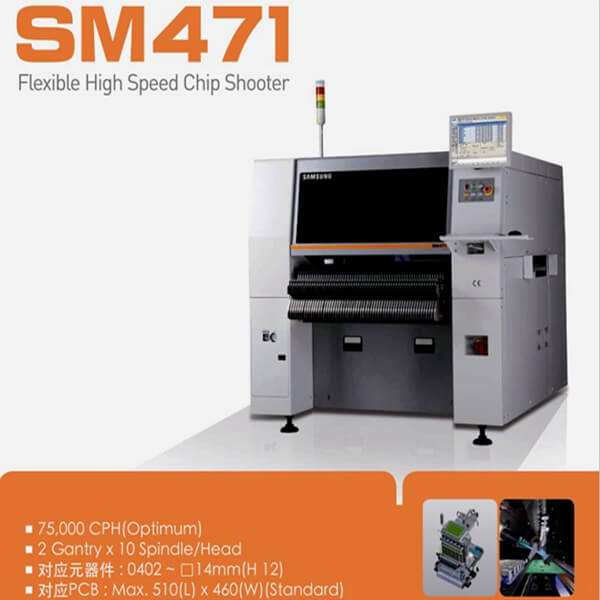

The Samsung SM471 is a high-speed chip mounter equipped with 10 axes for each mount head and dual-boom,

high-performance newer flying camera placement machine that delivers world-class top speeds of 75,000 CPH .

0402Chip ~ 14mm can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.

SM471 parameters
Number of shafts: 10 shafts * 2 cantilever
Mounting Speed: 75000CPH (Optimal Conditions)
Mounting accuracy: CHIP 50
Component Size: 0402, BGA, CSP (Ball Pitch 0.4mm)
Substrate size: Min 50 (L) * 40 (W)
Largest monorail 510 (L) * 460 (W)
Dual Rail 460 (L) * 250 (W)
PCB thickness: 0.38 ~ 4.2
Feeder equipped with the number: 120ea / 112ea
Power: AC200 / 208/220/240/380
Air pressure: 0.5 to 0.7 MPa (5 to 7 kgf / cm)
Weight: 1820KG
Equipment size: 1650L * 1690D * 1485H
