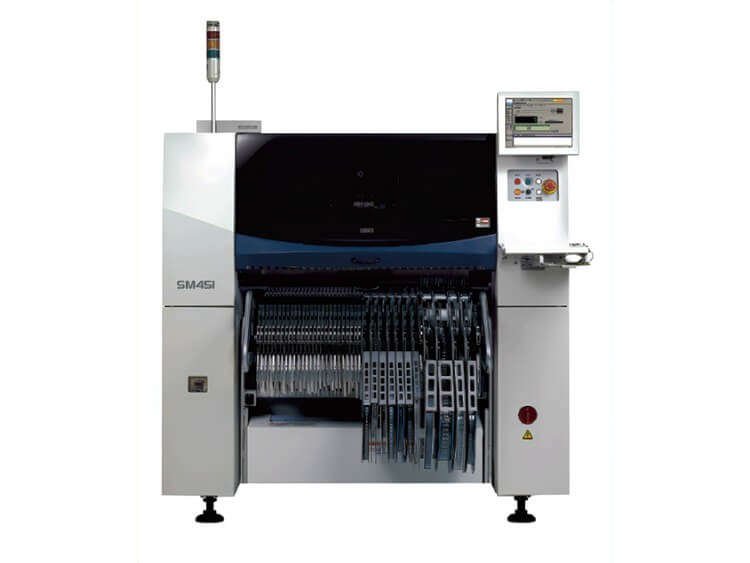

Samsung SM451 Pick and Place Machine

Component range: 0402-22mm
Patch speed 8,500CPH
1650mm x 1690mm x 1485mm
Max PCB: 460mm x 420mm

Samsung SM451 Pick and Place Machine

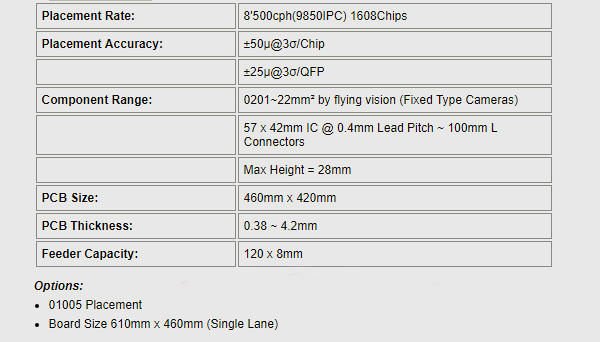

Specifications:

Samsung SM451 Pick and Place Machine

The Samsung SM451 chip mounter is a high precision multi-functional placement system equipped with high precision force control heads.  Based on the SM421 platform it's highly reliable. Linear scale have been added to the X-Y axis to improve placement accuracy.

Basically, it can be applied to various odd-shaped parts from 01005 fine chips to 57 x 42 mm IC parts, long connectors, bare chips and PIP insert parts. In addition, it also allows placement of special parts by providing gripper nozzles and supports the functions for part height adjustment of up to 28 mm, applicability to POP, lead lift-off check, and rear side reflection recognition.

Features:

Gripper Nozzles for Connectors

Co-Polarity Sensor for lifted leads

Force Control Z-Axis

Through Hole Component Placement

Connector Placement

Large PCB Size of 460mm x 420mmGripper nozzle for samsung SM451 Odd Form Placement Machine

0201 component recognition as standard

120 x 8mm Feeder Capacity

High Accuracy ±25µ@3σ/QFP, ±50µ@3σ/Chip

Small Footprint of just 1650mm x 1690mm x 1485mm

4.7KVA Max Power
