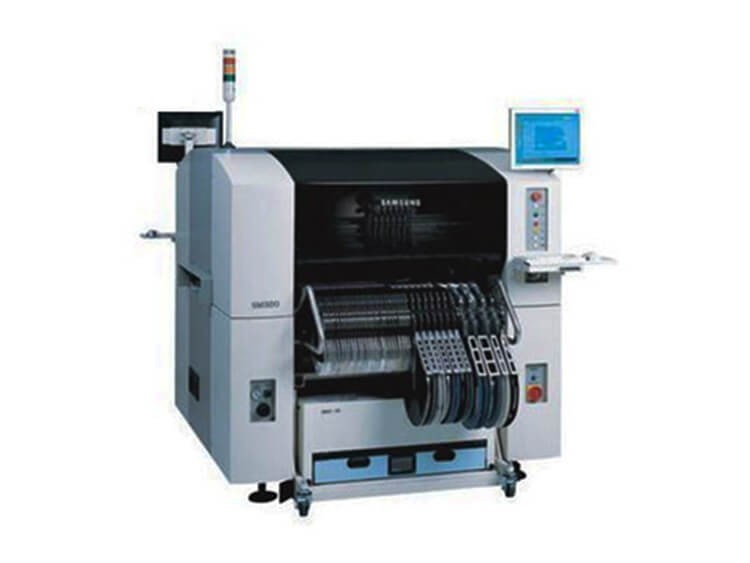

Samsung SM320 Pick and Place Machine

Samsung SM320 Pick and Place Machine

Specifications:

Samsung SM320 Pick and Place Machine

Full Vision Mounter 19k cph

Vintage 2005

Fully Overhauled & Re-Painted

Large PCB Size 610mm x 400mm

01005 ~ 22mm Square by Flying Vision Alignment (01005 Camera as option)

0.4mm Lead pitch @ 32mm Square using Vision Alignment

0.3mm Lead pitch camera included

BGA/CSP/uBGA by Vision Alignment

Feeder Capacity up to 120 x 8mm Feeders

IPC rated speed of 18'500cph (IPC9850 1608Chip)

Full set of nozzles to cover all component types

Large Component Library as Standard withmore than 1'800 component types

CAD Import facility as standard

Robust & Highly reliable Machine, fully supported by Elite 7 Installations Ltd.

Chip theoretical speed ：18500CPH
Mounting range 0402mm Chip ~  55mm IC
Placement accuracy plus or minus 0.03mm
PCB size 510 * 460-460 * 400mm
Equipment size 50 x 40 mm ~ 460 x 400mm

Component identification method

FLYING VISION + STAGE VISION
Mounting efficiency
Flight camera recognition system
CHIP 1608 18500 CPH (IPC9850)
SOP 15000 CPH (IPC9850)
QFP 5500 CPH (IPC9850)
Fixed camera vision system
1.4 SEC / QFP208 (TRAY SUPPLY STANDARD)
