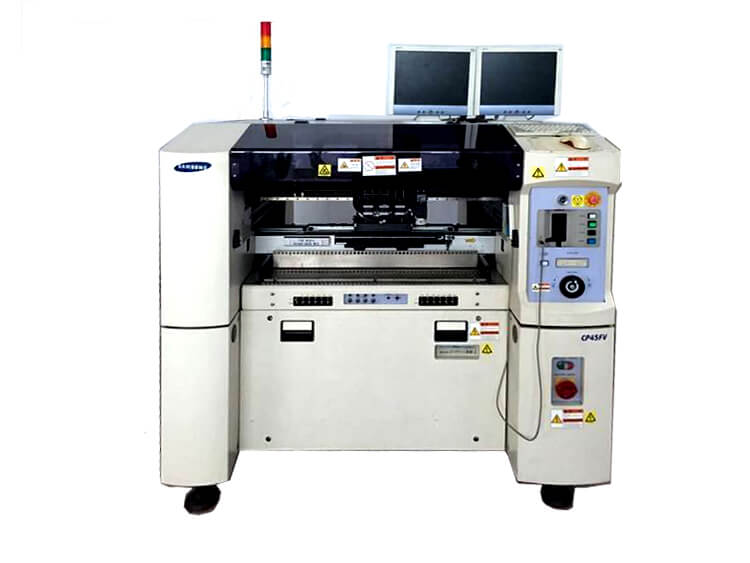

Samsung CP45FV NEO Pick and Place Machine

Mounting Speed: 14900CPH
Mounting accuracy 0603
PCB board size 460X400
weight:1000KG
Samsung CP45FV NEO Pick and Place Machine

Samsung CP45FV NEO Pick and Place Machine

Products description



Samsung Samsung CP45FV-Neo advantages:
1, simple operation, flexible line change: Samsung's CP and SM series Mounter is recognized by the

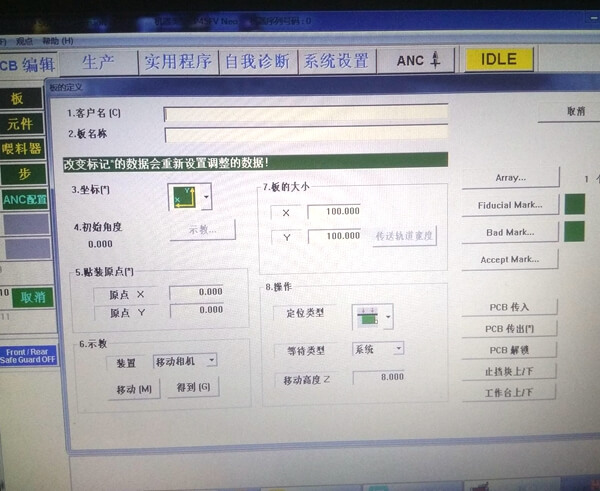

industry's most simple operation of the model, which uses WinXP system, compatible with Gerb files,

off-line programming, specifically in the PCB size , SMT components for a wide range of high precision,

flexible line change.Cost-effective, very suitable for medium and small quantities of more varieties,

the production of complex products.


Project CP45FV NEO
Visual method Vision (Fly Vision + Stage Vision)
Mounting Speed Chip top speed 0.178sec / chip
IPC9580 14900CPH (1608)
IC Flight Camera 0.75sec / QFP64
Fixed camera 1.6sec / QFP256
Mounting accuracy 0603 (0201) Chip ± 0.08mm
1005Chip ~ ± 0.1mm

QFP ± 0.04mm


Component Dimensions Flight Camera 1005 (0402) ~ □ 22mm IC, 0603 (0201) ~ □ 12mm (Option)

Standard Fixed Camera (FOV35) ~ □ 32mm IC (Lead Pitch: 0.4mm)
Special Fixed Camera (FOV20) ~ □ 17mm IC (Lead Pitch: 0.3mm)
Special Fixed Camera (FOV45) ~ □ 42mm IC (Lead Pitch: 0.5mm)
Leading Pitch (QFP) 0.3mm (with FOV20 Vision)
Min. Ball Pitch (BGA) 0.5mm (with FOV20 Vision)
Parts up to 15mm (9mm: with flying vision)
PCB board size 460X400X4.2 ~ 50X30X0.38 / 510X460X4.2 ~ 50X100X0.38 (CP45-L NEO)

Keywords:

SMT Pick and Place MachinePanasonic pick and place machineJUKI Pick and Place MachineHanwha Pick and Place MachineFUJI Pick and Place MachineSiemens Pick and Place MachineYamaha Pick and place machineSamsung Pick and Place MachineHitachi Pick and Place MachineI Pulse Pick and Place Machine.

FLASON provide a full SMT assembly line solutions, including SMT Reflow Oven ManufacturerWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@smtkait.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price !; Best shipping !; Best service !
