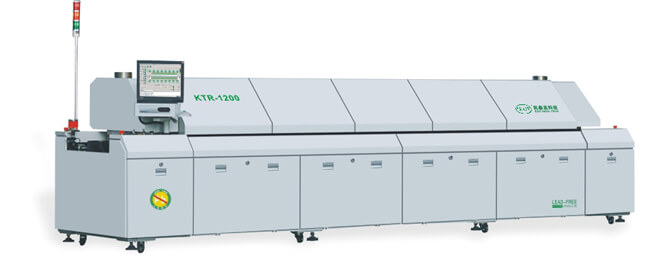

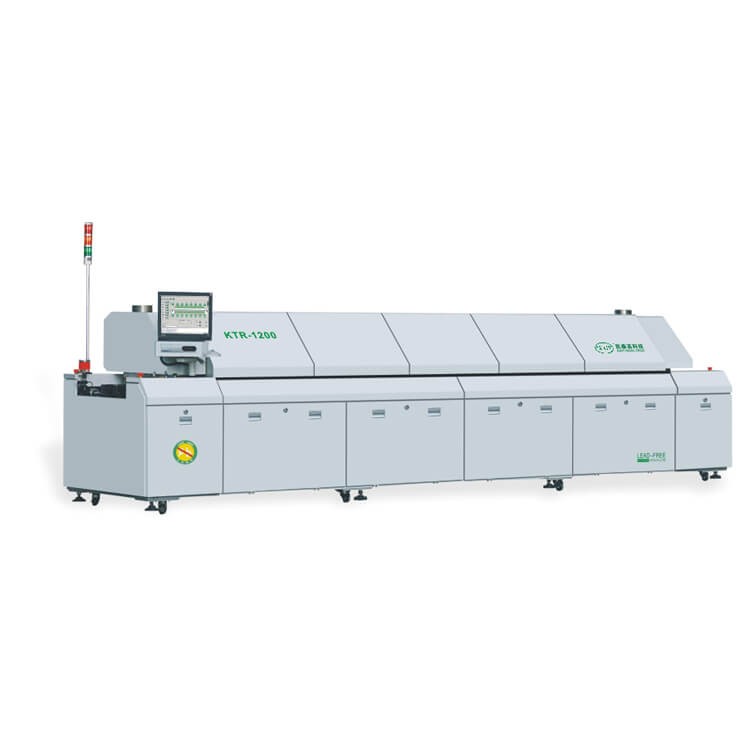

12 heating zones
3 cooling zones
1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.
2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.
3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.
4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.
5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.
6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.
Heating zones quan.
Top 12, bottom 12
Cooling zones quan.
Top 3, bottom 3
Heating zone length
Thick copper plate
3P 380V/220V 50/60HZ
Temp. control range
Temp. control accuracy
Temp. control method
PID +SSR drive
PCB temperature deviation
3 sections with 3 inverters
All profiles can be saved
Warm up time
High, low temp. alarm
2 Sectional structure
Rail fixed method
Stuck-free stainless steel type
PCB Max. width
Left to right
Forced air cooling
Top 12,bottom 12（4675mm）can meet the need of the peak lead-free technique.
After cool down by air, PCB temp. is ≤50℃ at the exit.
Warm up time
From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence
Warm up from two side, save the power and time
Profile transfer time
Heating zone temp. control accuracy
PCB temp. deviation
Empty→ full load heat balance respond time
