JUKI RX-8 SMT Assembly line

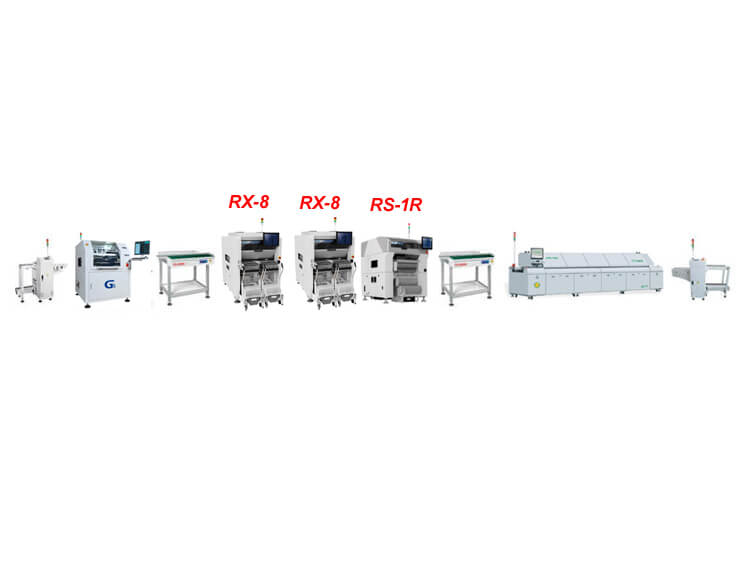

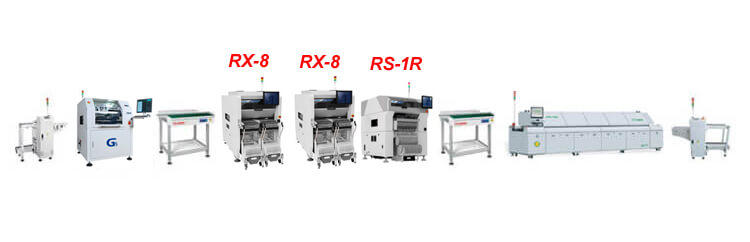

High Speed Automatic JUKI SMT production line, with 2 JUKI high speed pick and place machine RX-8 and 1 multifunction chip mounter RS-1R, placing speed can reach 200000 CPH.

JUKI RX-8 SMT Assembly line

Specifications:


JUKI RX-8 SMT Assembly line

High Speed Automatic JUKI SMT production line, with 2 JUKI high speed pick and place machine RX-8 and 1 multifunction chip mounter RS-1R, placing speed can reach 200000 CPH.

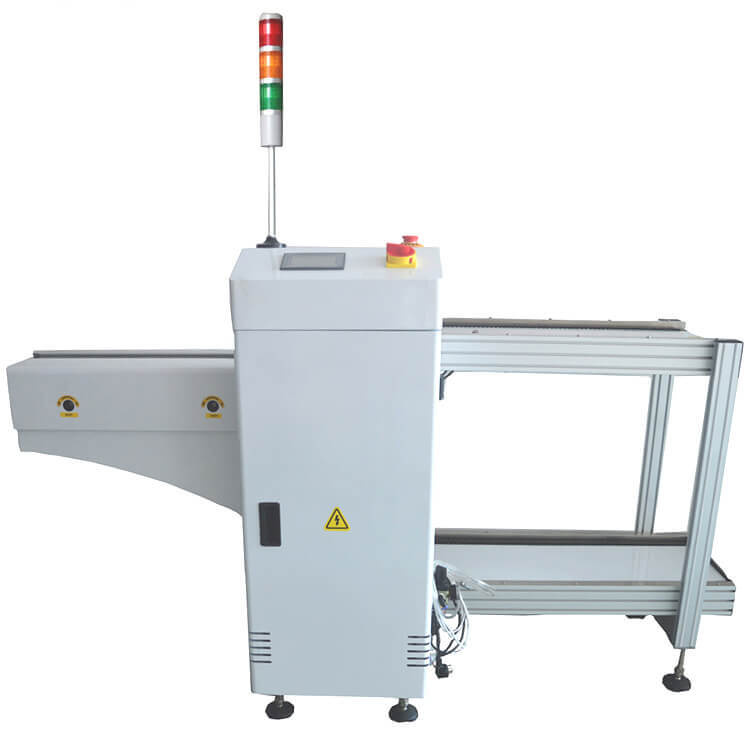

1. PCB loader LD330

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

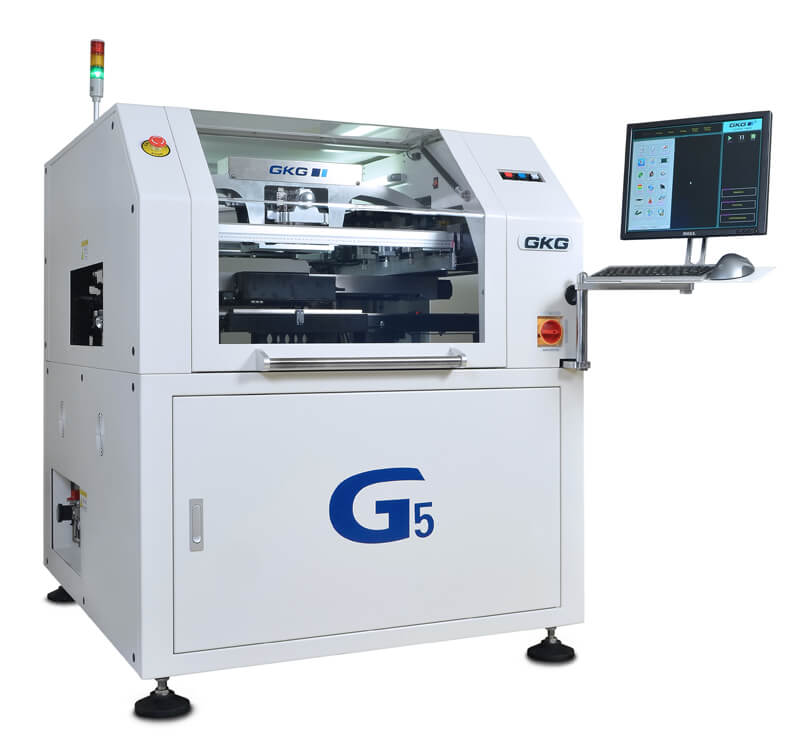

2. Automatic smt stencil printer G5

GKG Series High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size:50mm x 50mm ~400x340mm;

PCB thickness: 0.4mm ~ 6mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

3. high Speed JUKI RX-8 Pick and Place machine

Component placement speed (optimal conditions): Chip components 75,000 CPH

Element size: 03015 chip ~ 25mm square element

P16 Rotary head enables high-speed, high-density placement of extremely small components

P8 placement head enables high-speed, high-precision placement of small and medium-sized general-purpose components

Space-saving design with a width of 998mm

Supports dual-track production

Applicable Components: 03015 chip ~ 25mm square element

Board size:510mm×450mm

Feeder inputs:max 76

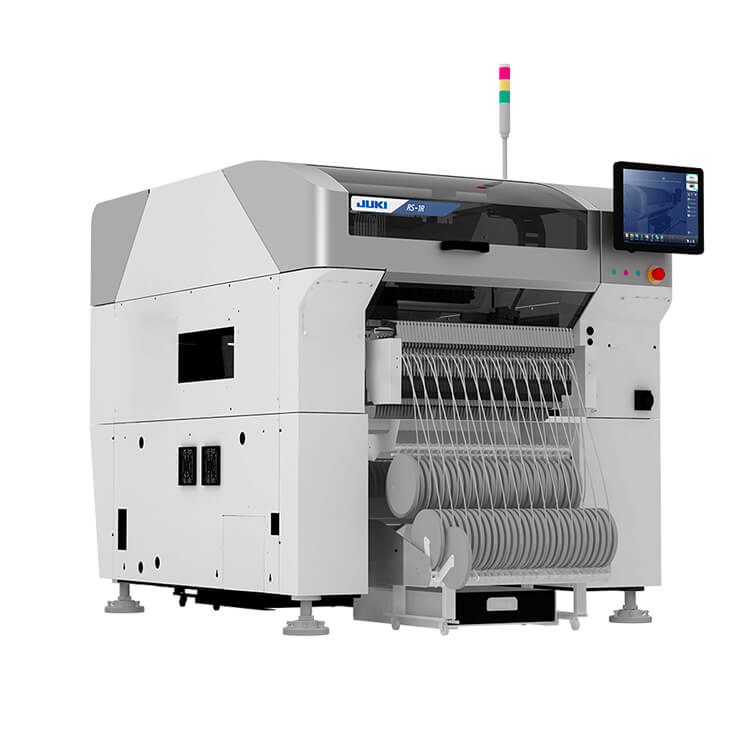

3.Multifunction  JUKI RS-1R Pick and Place Machine

High-speed placements of up to 100,000 CPH.*¹

Best-in-class placement rate per square meter (sq ft)*²

New P20 placement head achieves speeds of up to 100,00CPH. At only 998mm wide, the RX-8 provides exceptional productivity in a compact footprint. Best in class placement per square meter(square foot)

Max PCB: 510mm×450mm

Placing Speed:100,000CPH

Weight: Around 1,810kg

Dimension:998mm×1,895mm×1,530mm

4. SMT Reflow oven R10.

1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.

2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.

3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.

4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.

5. Effective heating zone length with uniform heat distribution.

6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.

7. PLC and PID closed loop control to achieve high precision temperature control.

8. Standard 10 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.

5.SMT PCB Unloader UNL330

1)Machine Size(L*W*H):L1790*W680*H11650mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)330*(W)250mm
