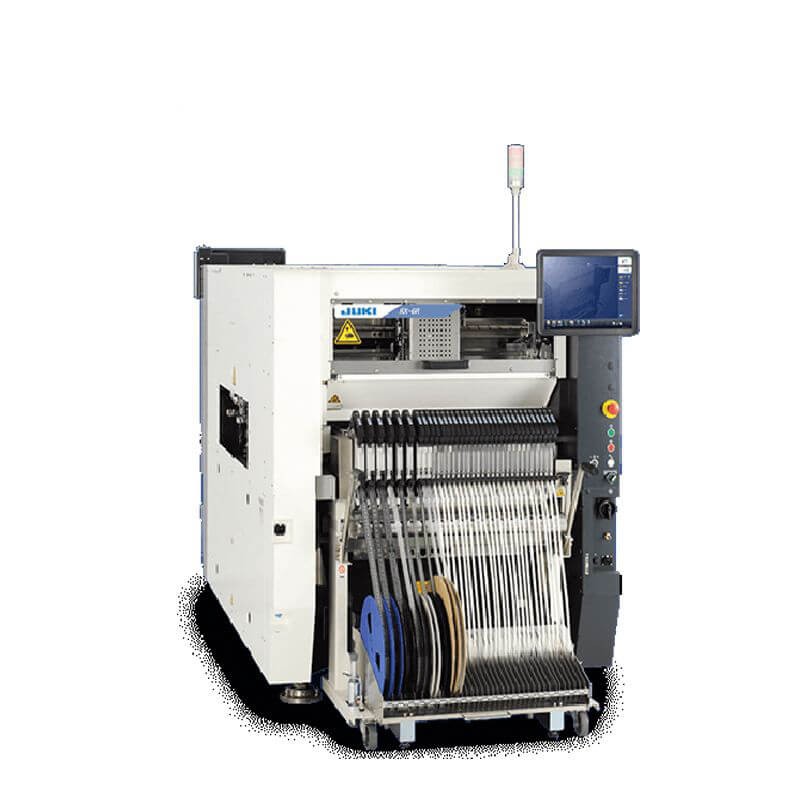

JUKI RX-6R 6B pick and place machine

Applicable Components: 0402(01005) ~ 33.5mm
Board size:50x50~610x590mm
Feeder inputs:max.160
placement capacity:52,000 CPH

JUKI RX-6R 6B pick and place machine

Specifications:

JUKI RX-6R 6B pick and place machine

1. This is applicable to dual-lane production.*6

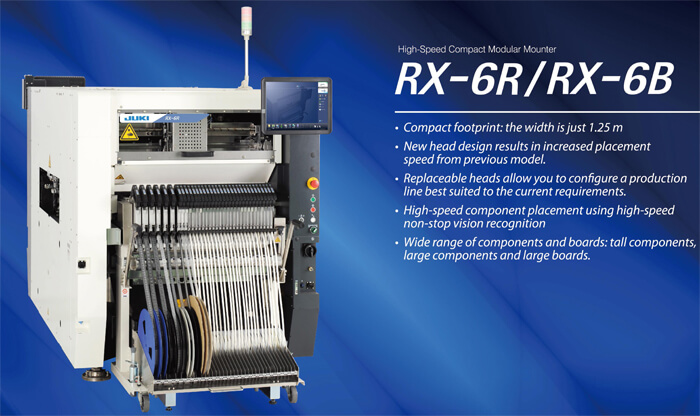

2. Compact footprint : the width is just 1.25m

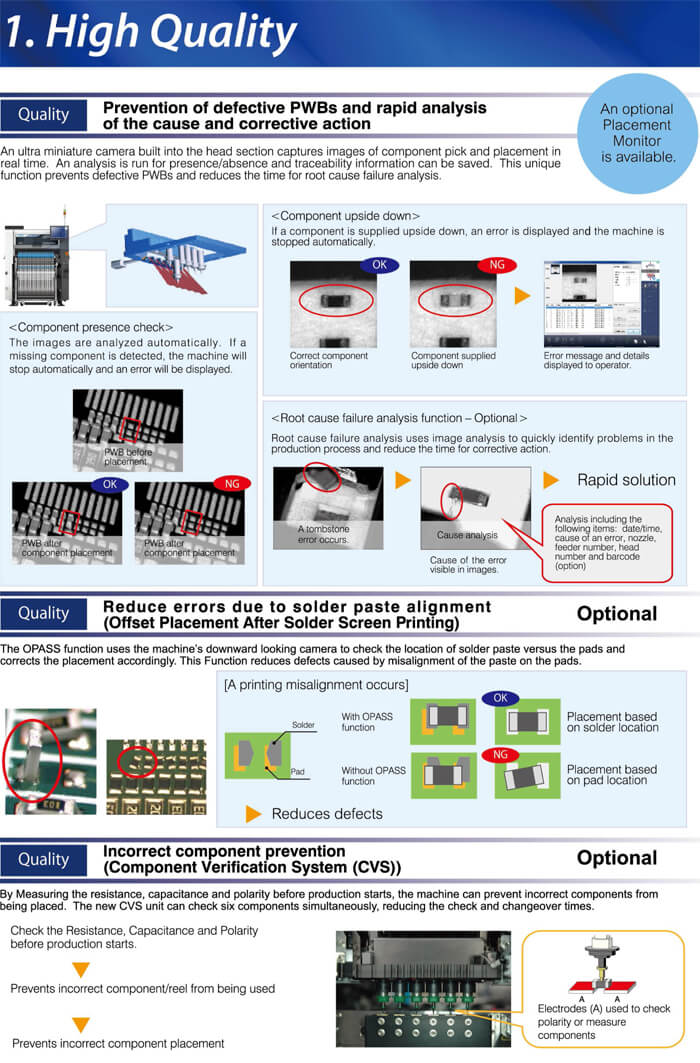

3. Equipped with standard Placement Monitor check function.*1

4. Replaceable head allow you to configure a production line best suited to the current repirments.*6

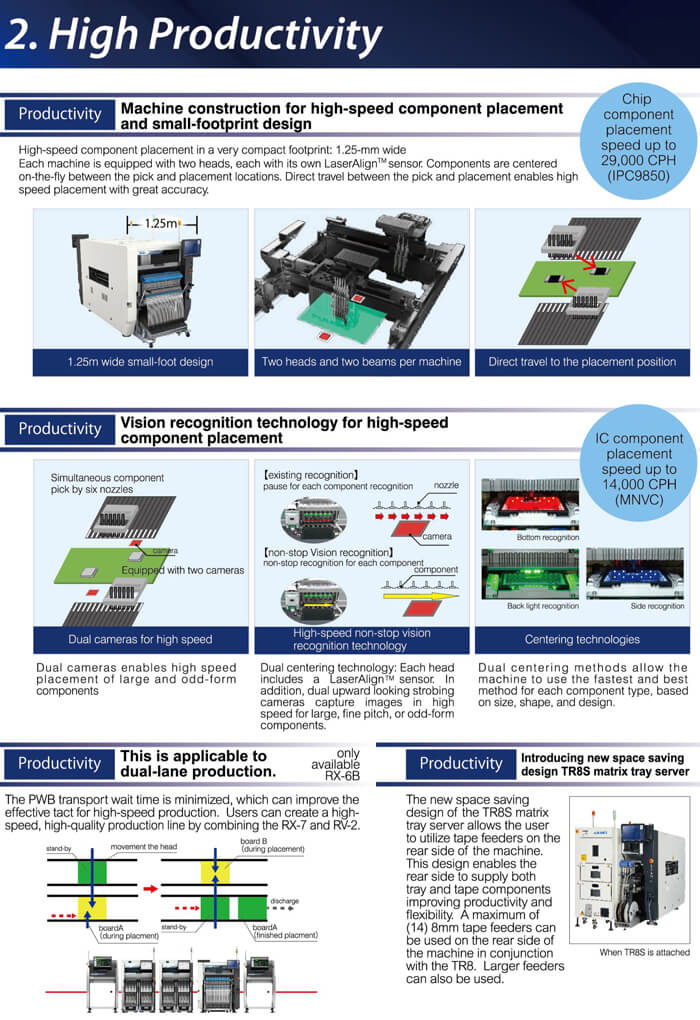

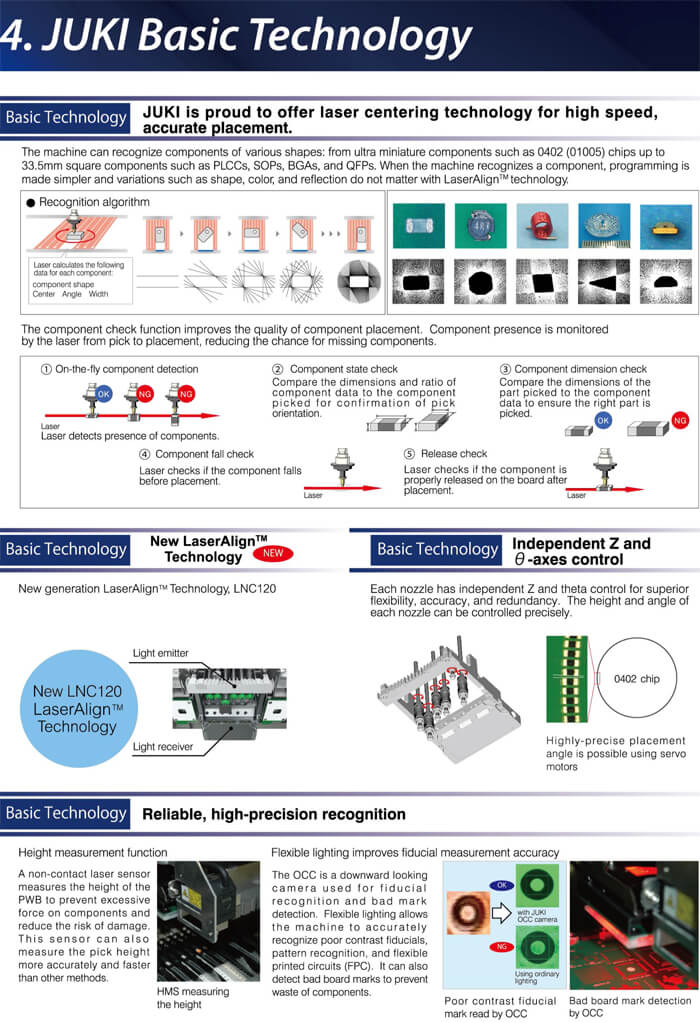

5. High-speed component placement using high-speed non-stop vision recognition.*3

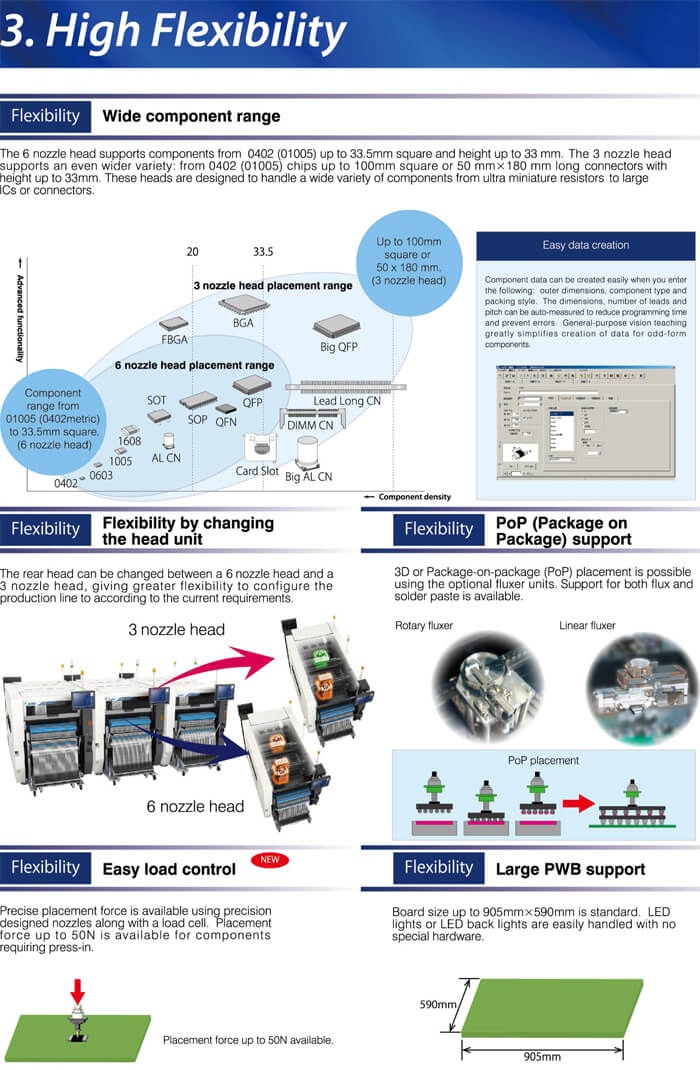

6. Wide range of components and boards: tall components, large components and large boards.

7. Brand new Matrix Tray Sever TR8S improves the component capability and productivity.

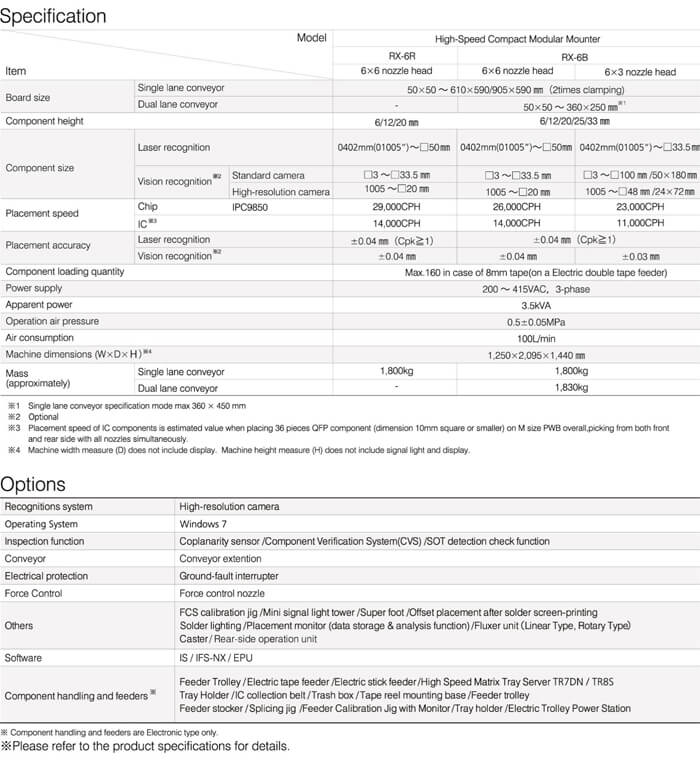

JUKI SMT Placement Machine RX-6R

Placement speed

Chip : 52,000CPH*2
IC : 14,000CPH*3

Component size

0402mm(01005 inch) ~ 50mm×50mm*4
0402mm(01005 inch) ~ 100mm×100mm / 50×180mm*5

Board size

Single lane conveyor:
50×50 ~ 610×590 / 905×590(2times clamping)
Dual lane conveyor*6:
50×50 ~ 360×250 / 360×450(single lane conveyor specification mode)

Head unit

6×6nozzle head
6×3nozzle head *6

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
