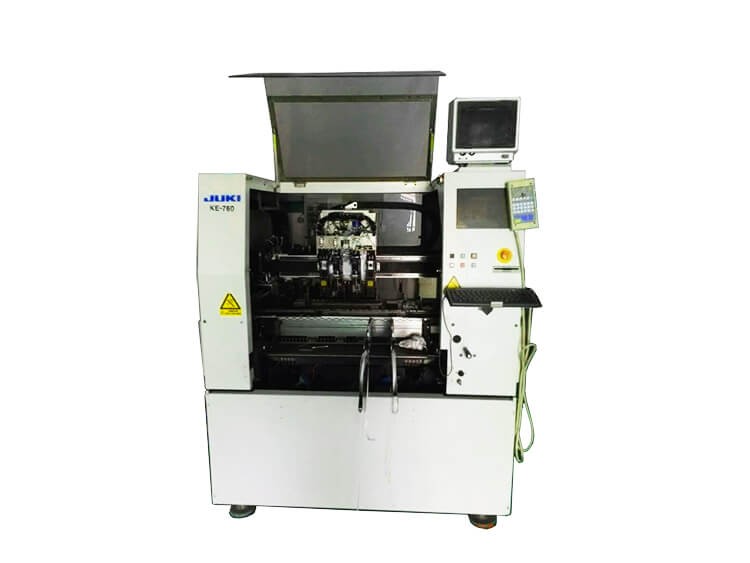

JUKI KE760 Pick and Place Machine

Applicable Components: 0402 ~ 50 × 50mm
Board size:330 × 250 mm
Feeder inputs:60
placement capacity:7000CPH

JUKI KE760 Pick and Place Machine

Specifications:

JUKI KE760 Pick and Place Machine

generally about 1999 equipment,high rigidity rack,integrated casting molding,increased 40% rigidity,

the use of XY independent drive placement head,2 Placement head,laser alignment,the accuracy of 0.03MM.

As a second-hand economy equipment in IC placement accuracy few models can compete with it,

so the second-hand placement machine market is still welcomed by the majority of users,

it is very Suitable for low-cost investment and entrepreneurs.

Device parameters

Placement head: 2 placement head (at the same time,the adsorption attached alternately)

Mounting accuracy: ± 0.03mm / chip (laser recognition)

± 0.09mm / QFP (laser recognition)

Patch speed: 0.32 seconds / CHIP,1.8 / sec QFP)

Substrate size: Min 330 × 250 mm

Component range: 0402 ~ 50 × 50mm

Power: Single-phase AC220V,50 / 60Hz,2.5KVA

Air pressure and air consumption: 0.5Mpa ± 10%,150N1 / min

Overall dimensions: 1400 × 1300 × 1551mm

Weight: 1150KG

feeder float detection

large compliment of nozzles included

both lasers in good shape and well within spec

60 feeders 8x4mm included

5 ‚ 12mm feeders included

5 16mm feeders included

1.Flason Electronic have a good check and a test before shipping out.

2. We provide you the friendly English User manual or the operating videos for free;

3. 24 hours technical support by email or Skype or Trade Manager or Calling.

4. 1 year machine parts free warranty.

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
