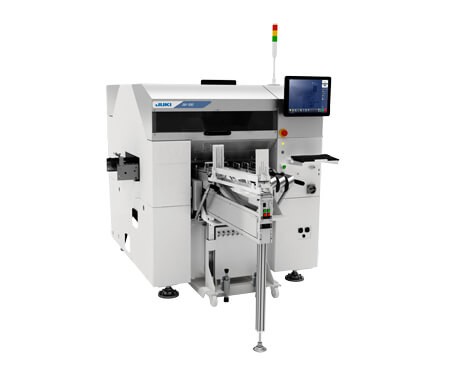

JUKI JM-100 Hybrid Insertion Machine

Board size 410×360mm
Component Size: 0603~50mm
Placement Speed:16,000CPH
PCB Weight max.4kg

JUKI JM-100 Hybrid Insertion Machine

Specifications:

JUKI JM-100 Hybrid Insertion Machine

Advancing versatility, quality and speed

Best in class speed.

Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.

New "Takumi head" with multiple recognition heights

Component Feeding

Line control using JaNets software

Multi Task Platform JM-100


L size board

Board size

410×360mm

PCB Weight

max.4kg

Component height

max30mm

Component Size

Laser recognition

060350mm

Vision recognition

3mm50mm

Insertion Speed
Insertion components

Vacuum*2

0.6sec/part*1*3*4

grip

0.8sec/part*2*3*4

Placement Speed
(SMT

Chip ( Optimum

16,000CPH*3*4

Placement Accuracy
(SMT

Laser recognition

±0.05mm

Vision recognition*1

±0.04mm

* 1 Specification conditions
(Applicable part: Aluminum electrolytic capacitor (φ 8 mm), Feeder: two MRF-S, Placement conditions: Simultaneous pick, sequential insertions using 2 nozzles)
* 2 Specification conditions
(Applicable part: Connector (4 pin), Insertion conditions: 2 sequential picks and insertions using 2 nozzles)
* 3 Board transfer and mark recognition time not included.
* 4 When the part height is 16 mm.
