Hanwha SM471 Plus Pick and Place Machine

Component Range Chip 0402 ~ 14mm(H 12mm) IC
Feeder Capacity 120ea
weight Approx. 1,820kg
Dimension(mm) 1,650(L) x 1,690(D) x 1,485(H)
Hanwha SM471 Plus Pick and Place Machine

Hanwha SM471 Plus Pick and Place Machine

Products description

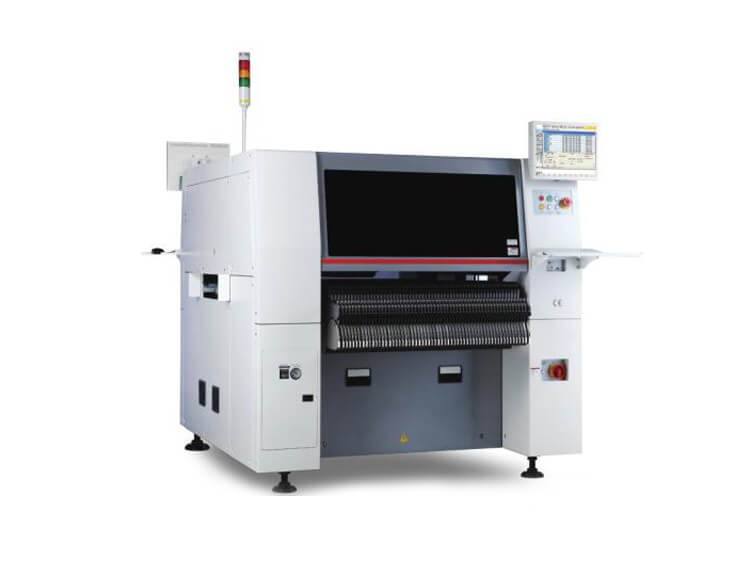

Hanwha SM471 Plus pick and place machine

The Samsung SM471 Plus is a high-speed mounting mahcine equipped with 10 axes for each mount head and dual-boom.

high-performance newer flying camera placement machine that delivers world-class top speeds of 78,000 CPH.

0402(01005")~14mm(h12mm) can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.

Dual Lane System

PCB Loading Time of “ZERO” Maximizes actual productivity by minimizing the PCB transfer time by

adopting a first-in-first-out type shuttle inlet conveyor. In addition, it supports various placement

modes according to production characteristics.

Electrically Driven High Speed and High Accuracy


SAMSUNG SMT pick and place machine SM471 Plus


Flying Vision

Number of Spindles

10 Spindles x 2 Gantry

Placement Speed

78,000 CPH(Optimum)

Placement Accuracy

±40㎛@±3σ/Chip ±50㎛@±3σ/QFP

Component Range

Chip 0402 ~ 14mm(H 12mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm)

Board Dimension(mm)

 L510xW460(Standard) L610xW460(Option)

Feeder Capacity

120ea / 112ea(Docking Cart) (Based on 8mm)


AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)Max. 5.0kVA

Air Consumption

0.5 ~ 0.7MPa(5 ~ 7kgf/cm2)


Approx. 1,820kg

External Dimension(mm)

1,650(L) x 1,690(D) x 1,485(H)
