Hanwha HM520 SMT Assembly line

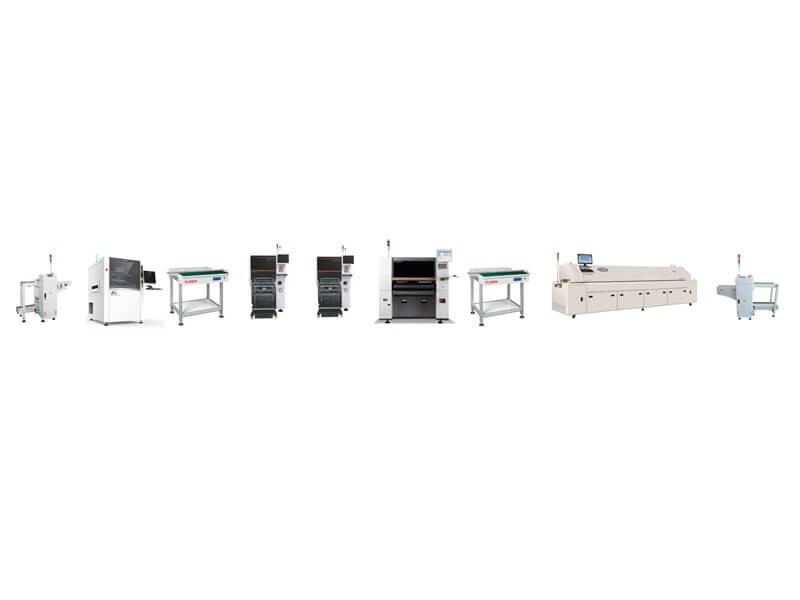

High Speed SMT Assembly line, with 2 Hanwha HM520 and 1 SM481 plus, the production speed can be around 200000 CPH. really fast for Mobile phone, LED light production, communication, LCD TV, STB, family cinema, vehicle electronics.

Hanwha HM520 SMT Assembly line

Specifications:


Hanwha HM520 SMT Assembly line

High Speed SMT Assembly line, with 2 Hanwha HM520 and 1 SM481 plus, the production speed can be around 200000 CPH. really fast for Mobile phone, LED light production, communication, LCD TV, STB, family cinema, vehicle electronics.

1. High Speed Hanwha HM520 pick and place machine.

Hanwha HM520 modular Chip mounter, it's Hanwha's first modular chip mounter, 890MM length.

890MM length ultra-small Chip mounter

80,000CPH(Rotary Head)

60,000 CPH (Piano Head)

LED products: 72,000 CPH (Rotary)

Automatic detection of pick and placing problem.

Automatically replenishing suction/mounting position and height deviation

Preventing LED defects caused by turning

PCB: Max (L) 750x (W) 580mm (optional)

Equipment size:2370x1440x890mm
Power AC200 / 208/220/240/380
Equipment weight:1605KG

2. Multifunction Hanwha SM482 Plus Pick and Place Machine

Hanwha SM482 is a Multifunction Pikc and place machine, deal with big components pick and placing.

1. Applicability to odd-shaped parts is reinforced.

2. Equipped with a head with one gantry and six spindles

3. Placement accuracy correction system(head offset,C/V offset etc.)

4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."

5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."

6. Placement Rate:30,000CPH(Optimum)

7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)

8. Option: 50(L)*40(W)~760(L)*460(W)

3. High Accuracy A9 SMT stencil printer.

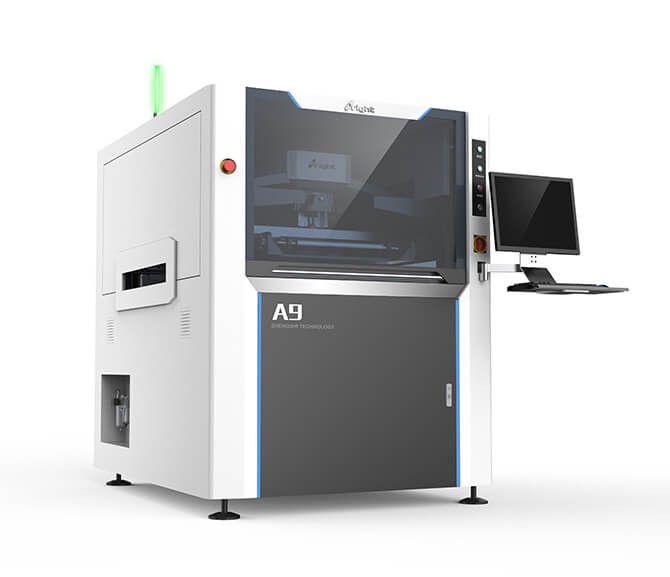

A9 Solder Paste Printer Fully Automatic-Good Price! Good Quality! Good Service!High Accuracy smt stencil printer, which can satisfy the printing process requirements of 03015,0.25pitch high precision and high speed.

A Seriel SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification :
A Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~1200mm x 800mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

4. High output 6 meter 10 heating zones R10 SMT reflow oven

1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.

2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.

3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.

4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.

5. Effective heating zone length with uniform heat distribution.

6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.

7. PLC and PID closed loop control to achieve high precision temperature control.

8. Standard 10 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.

9. The rail track is dealt with hardening process to make it more reliable.

10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.

11. Computerized controlled rail chain lubrication structure.

12. Powerful software system can save all settings and data printout capability.

13. Flux removal unit meet with environmental protection requirement.

14. Nitrogen structure is an option.

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
