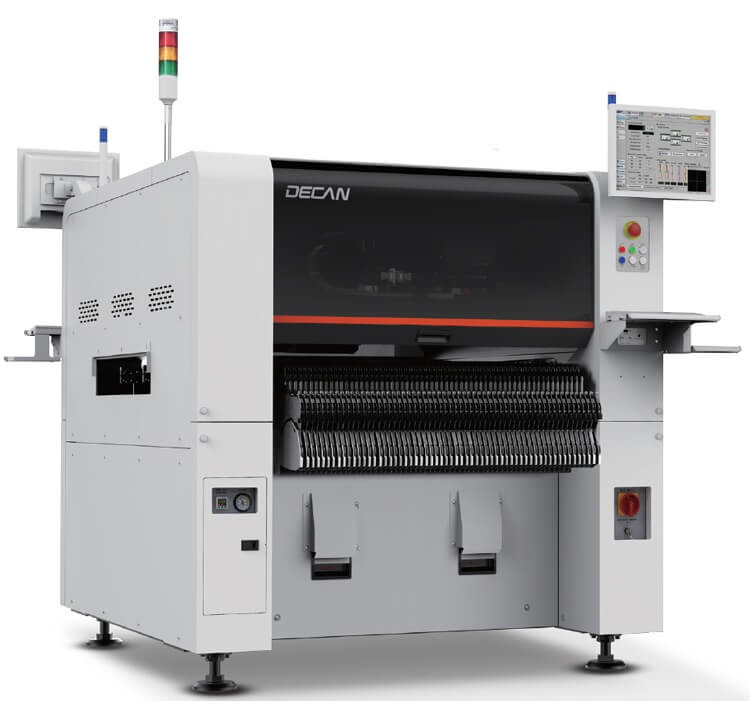

Hanwha DECAN S2 Pick and Place Machine

Speed : 92,000 CPH
2 Gantry x 10 Spindles/Head
Parts Size : 03015 ~ 12mm, H10mm
PCB Size : 50 x 40 ~ 510 x 460mm
Hanwha DECAN S2 Pick and Place Machine

Hanwha DECAN S2 Pick and Place Machine

Products description



Advanced Chip shooter

The Decan Line maximizes productivity in connection with the T-solution, an optimized software for integrated

management, and introduces stable quality.

DECAN S2 increases the speed/accuracy for the placement of microchips (03015)

HIGH PRODUCTIVITY
Optimizing PCB transportation paths for productivity improvement
Modular Conveyors
■ An optimal conveyor model configuration is possible according to production line composition (shuttledual)

applied with a modular conveyor that is replaceable on site.

■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed
Twin Servo Control
■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed

 Flying Head
■ Minimized head movement path through recognizing parts during transportation following parts installation
■ 10-spindle head with individually operating Z axes

HIGH RELIABILITY
Placement Accuracy: ±28㎛ (03015), ±25㎛ (IC)
■ Applied with a high-precision linear scale and rigid mechanism
■ Provides precision calibration algorithms and diverse automatic calibration functions

FLEXIBLE LINE SOLUTION
Provides optimal line solutions through versatility and productivity improvement
DECAN Line
■ Optimal line configuration from chips to uniquely-shaped components according to options setup
Equipment capable of responding to large-scale PCBs, which can be remodeled on site
■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling
– Responsive to a maximum 1,200 x 460mm PCB
Responsive to uniquely-shaped components (including tray components)

EASY OPERATION
Strengthened equipment software operation convenience
■ Convenient production and editing of work programs with built-in equipment optimization software
■ Provision of a range of work data and information on a large-scale LCD screen
High-precision, convenient electric feeder
■ Calibration and maintenance-free electric feeder
■ Improved work convenience with a single reel bank mounted feeder
■ Improved productivity through the provision of  automatic parts pick-up position alignment between feeders
Reduced work load through parts connection automation (smart feeder)
■ Automatic loading and splicing capabilities implemented as an industry first
Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually
■ Zero consumables costs for parts connection attained


■ Speed : 92,000 CPH (Optimum, HS10 Head)
■ Structure : 2 Gantry x 10 Spindles/Head
■ Accuracy : ±28μm Cpk≥1.0 (03015 Chip)
±25μm Cpk≥1.0 (IC)
■ Parts Size : 03015 ~ 12mm, H10mm
■ PCB Size : 50 x 40 ~ 510 x 460mm (Standard)
~ 740 x 460mm (Option)
~ 1,200 x 460mm (Option)
