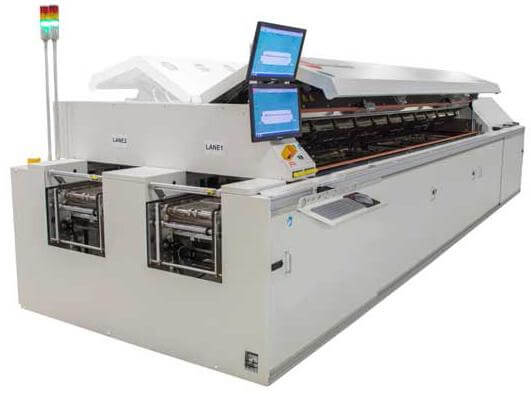

BTU PYRAMAX ZeroTurn Dual Chamber Reflow Oven

Robust construction ensures thermal isolation
Cross-belt uniformity unaffected by process change on neighboring lane
Process Cpk controlled regardless of recipe change in neighboring lane

BTU PYRAMAX ZeroTurn Dual Chamber Reflow Oven



BTU PYRAMAX ZeroTurn Dual Chamber Reflow Oven

Eliminate reflow oven changeover time.

The PYRAMAX ZeroTurn is designed for high volume electronics manufacturers who must also manage process mix and are dissatisfied with the poor process separation of other dual chamber machines.

Get more out of your SMT line with Pyramax ZeroTurn. Our dual chamber reflow oven eliminates process changeover time while preserving the process control that the Pyramax family of reflow ovens is known for.    Zero turnaround means that high volume manufacturers, Dual Chamber Reflow Oventhat have to contend with product mix, deal with less downtime – enabling higher productivity from the whole line.

Our dual chamber reflow oven design truly isolates the two processes, with independent temperature, belt speed and static pressure convection rate controls.    Lead-free and leaded processes can be at temperature, side-by-side, without affecting cross board thermal uniformity in either chamber.


Independent control of belt speed, zone temperature, and convection rate

Robust construction ensures thermal isolation

Cross-belt uniformity unaffected by process change on neighboring lane

Process Cpk controlled regardless of recipe change in neighboring lane


Pyramax has long been the benchmark for performance for convection reflow – now twice as good with this dual chamber system.  The Zeroturn is built upon the Pyramax platform, and shares many common parts, simplifying maintenance and training for existing users.   Furthermore, the Zeroturn carries the same warranty as Pyramax, including a lifetime guarantee on heaters and blowers.

Like the rest of the rest of the Pyramax platorm, Zeroturn features BTU’s proprietary WINCON™ control system.   WINCON features a simplified user interface and incredibly powerful analytical capabilities. The lastest versions of WINCON include BTU’s cost-saving Energy Pilot feature. Energy Pilot reduces running costs automatically during idle times thereby minimizing Cost of Ownership.  In addition BTU’s Wincon control system is Industry 4.0 enabled allowing for advanced control of SMT processes.


Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email:
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
